化工泵 IS IH 端吸泵可以打清水也可以打化工廢水,帶腐蝕性介質可以用。
產品概述
IH IS型化工泵是單級單吸(軸向吸入)懸臂式離心泵,供輸送不含固體顆粒具有腐蝕性、粘度類似水的液體。其標記、額定性能和尺寸等效采用國際標準ISO2858,具有性能范圍廣、效率高、“三化”水平高和維修方便等特點,其效率比F型泵平均提高5%,是國家推廣的節能產品。本司產品全部采用計算機設計和優化處理,公司擁有雄厚的技術力量、豐富的生產經驗和完善的檢測手段,從而保證產品質量的穩定可靠。
主要特點
1、IH IS 化工泵系單級單吸化工離心泵,是取代F型耐腐蝕離心泵的節能型更新?lián)Q代產品,該產品的執行標準,GB5662-85,ISO2858,GB/T5656-94.
2、IH化工泵系臥式徑向剖分,后開門結,檢修時不需拆卸管路.
3、泵體軸向吸入,徑向排出,腳支承式,泵與原動機連結用加長聯軸器.
4、泵軸承用潔凈的22號機械滑油,泵運轉前須向懸架內加滑油至油標中心線以上2mm左右
5、大直徑葉輪用填料密封,付葉輪密封(動力密封)
楊程: 4~125m
流量: 5.6~400m3/h
轉速:2900r / min ,1450r/min
進口尺寸:50~200mm
產品用途
IH IS 型化工泵輸送介質溫度為-20℃~105℃,需要時采用雙端面密封冷卻裝置,可輸送介質溫度為300℃以下。適用于化工、石油、冶金、電力、造紙、食品、制藥、環保、廢水處理和合成纖維等行業用于輸送各種腐蝕的或不允許污染的類似于水的介質。

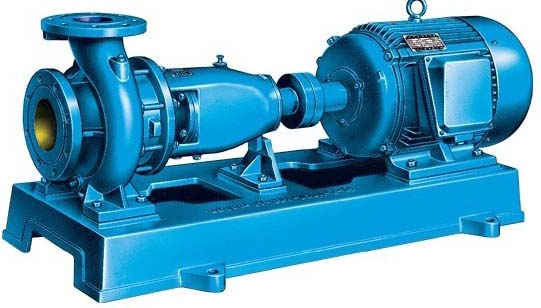

End suction pump IS, IH pump

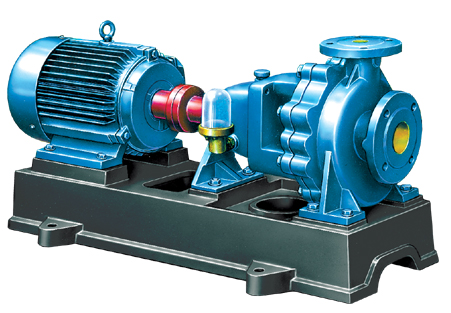

IH chemical pump
IS end suctiion pump
IS IH series pump is a single-stage, single-suction, horizontal centrifugal pump, which has advanced hydraulic model, balanced running, low noise, reliable sealing, zero leakage, reasonable structure, space efficient, long life.
With different fluid media and temperatures, model ISWR hot-water pump, model ISWH chemical pump, model ISWB oil pump are designed and manufactured. They can be widely used in households, construction, water supply and drainage, irrigation works.
Head 4~125m
Capacity 5.6~400m3/h
Speed 2900r / min and
1450r/min
Suction 50~200mm
